Wine Display Box

What a display box has to do

Three jobs sit under this one name. A window shows the bottle and label without anyone opening the box. A lid or door stays open so the bottle sits there on its own. Or the box is the display piece and the buyer keeps it after the wine is gone. Pick the job first, because the structure follows from it and not the other way round.

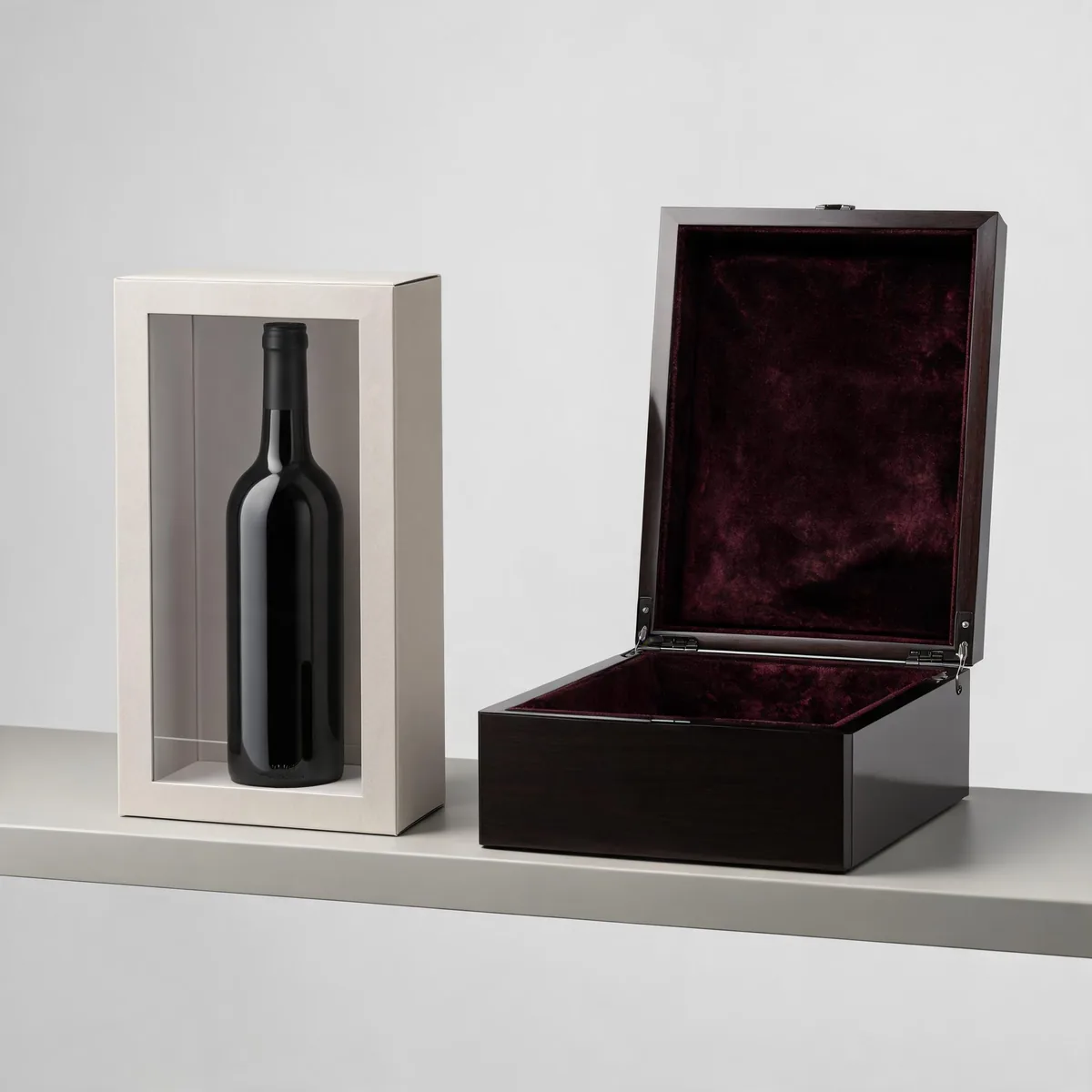

The reference builds on this page cover the range. There's a custom luxury leather wine gift box with a PVC transparent window. There's a European retro cylindrical wooden wine box in solid wood with an embossed floral texture, a vintage burgundy finish, antique-style hardware and a soft velvet lining, suited to gift presentation, retail display or collection. And there's a custom luxury wooden wine box with a high gloss lacquer finish.

If your buyer never sees the box before the bottle, a plain shipping carton does the job for less. Display work is for the shelf, the counter, the tasting room, or the moment the box is opened in front of someone. That's the whole point of it.

Windows, lids and doors

A window is cut into a panel, and that panel loses stiffness where the cut is. The bigger the opening, the more the board has to make up elsewhere. A window also collects dust and fingerprints, and on a shelf under lights both show. Nobody wipes a box before a customer picks it up. If your channel is a shop where stock sits out for weeks, weigh that against the visibility you gain.

Film choice is part of the job. Clear PVC is the common pick: it shows the label straight, it's forgiving on cost. Anti-glare PET cuts the reflection under shop lights, which matters if your shelf sits under a spot, but it can read slightly softer than clear PVC and you'll want to see it against your label before you commit. Neither film is a place to guess. Ask for the printed sample and look at both under the light your customer will see them in.

A lid or door that stays open puts different demands on the build. The hinge has to hold the lid at an angle without creeping, and the inside of that lid is now on show, so the lining and the paper have to be finished on faces that would normally be hidden. An insert that looks fine with the lid shut can look unfinished the moment it's open.

Board and material choices

Materials we use are gray board with specialty paper, kraft, white card, gold-silver cardboard, flocked paper and leather-textured paper. The board underneath does the structural work. Our board standard is gray board 1200 g minimum, and 1400 g recommended for spirits. Facing paper is 157 g minimum, in specialty paper. We don't run recycled gray board and we don't run high moisture paper.

That last point matters more on a display box than on a shipping box. A panel that bows or ripples after a few weeks on a shelf ruins the look, and moisture in the board is one of the usual causes. Heavier board also holds a cleaner edge where a window is cut and where a lid meets the base.

Match the material to the job. Gray board with specialty paper carries the structure on any build, and it's the default for a window panel because the board has to make up the stiffness the opening takes away. Gold-silver cardboard gives you a brighter surface for a printed panel, so it suits a closed face where the print is doing the work. Flocked paper and leather-textured paper are finish rather than structure: they're what your hand feels when the box is picked up, and they earn their place on a keepsake interior or a lid that stays open. Kraft and white card sit at the lighter end, better for a printed outer than for a panel that has to hold a bottle. None of these change the board rule underneath.

The insert and the four-point hold

Our insert rule is simple: the bottle is held at four points, with no unsupported neck or shoulder. A display box that stays open makes this harder, not easier, because the bottle has to sit in a cradle that looks deliberate from the front. If the neck floats or the shoulder rests on nothing, you'll see it every time the lid is up.

We check a filled box three ways. A 10 second shake with no movement. A 45 degree tilt with no slide. A full inversion with no release. Those checks catch the insert that looked right in a drawing but lets the bottle shift once it's loaded.

Our control tolerance is plus or minus 1 mm on the insert and plus or minus 2 mm on the box body. On a display box the insert tolerance is the one to watch, because a cradle that's loose shows as a wobble and a cradle that's tight can mark the label. Send the bottle and we work to the bottle, not to a nominal diameter.

Colour, finish and what's hard to hold

Colour is controlled with Pantone matching, first article approval and mid run sampling. We don't rely on one check at the start. Black, deep blue and burgundy are the hardest to hold, and the vintage burgundy finish on a wooden box is exactly that family of colour. If your brand colour sits in that range, expect to look at it more than once.

A high gloss lacquer finish shows every flaw underneath it. Dust, a sanding mark, a fingerprint on the panel before coating: gloss amplifies all of it. Matte and textured finishes hide more. That's a real trade-off between the look you want and how forgiving the surface is on a shop floor.

Flocked paper and velvet linings are the opposite problem. They pick up dust and they show handling, but they also read as quality the second someone touches them. On a keepsake box, that's usually worth it.

What we check before it ships

Our in-house checks run on the loaded box, not an empty one. A 1.2 m six-face drop test. A stacking top load of 40 kg or more held for 24 hours. Truck and sea vibration simulation, with no internal movement allowed. A display box still travels, and it still gets stacked in a warehouse before it reaches the shelf.

The drop and stacking checks are the ones that catch a window panel that's too weak for its opening, or a lid that pops under load. Vibration catches an insert that creeps. All three are done here, on your structure, before the order leaves.

The eight steps are online consultation, design confirmation, plate making and proofing, machine printing, machine lamination, machine box making, hand assembly, then quality inspection and packing. Display work leans on the hand assembly step more than most, because windows, hinges and linings don't all go on by machine.

When this is the wrong choice

If the bottle ships straight to a customer in a plain outer, skip the display build and put the money into the shipping box. If your retail stock sits in bright light for months and nobody dusts it, a window will look tired and a closed box with a printed panel will hold up better.

A display box is also a poor fit when the bottle is the only thing that matters and the box gets thrown away. Keepsake builds are for buyers who keep them, and if yours don't, you're paying for a structure nobody sees twice.

And if you can't send a bottle or an accurate set of dimensions, we can't hold the four-point rule or the insert tolerance. A display box built to a guessed diameter is a box that wobbles on the shelf. That one is not worth the money.

Questions buyers ask

Send a bottle sample or your box dimensions and we'll come back with a structure and a quote for your display box. Get a Quote
