Corrugated Cardboard Wine Box for Single Bottles
Built from corrugated cardboard, this single-bottle wine box solves a problem that shows up in every courier van: glass breaking in transit. The inside uses a honeycomb paper structure which expands to grip the bottle, and because it ships flat you cut your freight volume and cost straight away. No foam. No bubble wrap. Wineries, brand retailers, and anyone sending one bottle at a time can use it, and red wine, champagne, brandy, and spirits all fit. The box is made from recyclable materials, supporting a reusable packaging story your customers will see.
- Built-in honeycomb cushioning. As the internal honeycomb structure expands around the bottle, it absorbs the shocks that come from knocks and drops during transport, so it replaces foam and bubble wrap entirely.
- Ships flat to lower freight. The box arrives flat-packed and is folded when needed, which reduces its volume enough to directly lower your international shipping costs.
- Recyclable corrugated board. Because it's made from reusable, eco-friendly materials, the box can be recycled after use. That fits a sustainability message for any brand.
- Fits many occasions. Retail shelves, weddings, holidays, or direct-to-customer shipments can all use it, and red wine, champagne, and other premium drinks are suited to it.
Specifications
- Category
- Wine shipping boxes
- Bottles
- 1
- Cushioning structure
- A newly designed internal honeycomb structure protects the wine bottle from breakage
Customisation
Size for your bottle, colour of corrugated board, and printing on the outside are all customisable, including your logo, brand name, or a simple pattern. The honeycomb insert is matched to your bottle's profile. Want a window or a handle, a different structure entirely? Ask, and we'll work from your bottle sample or dimensions.
How the box is built

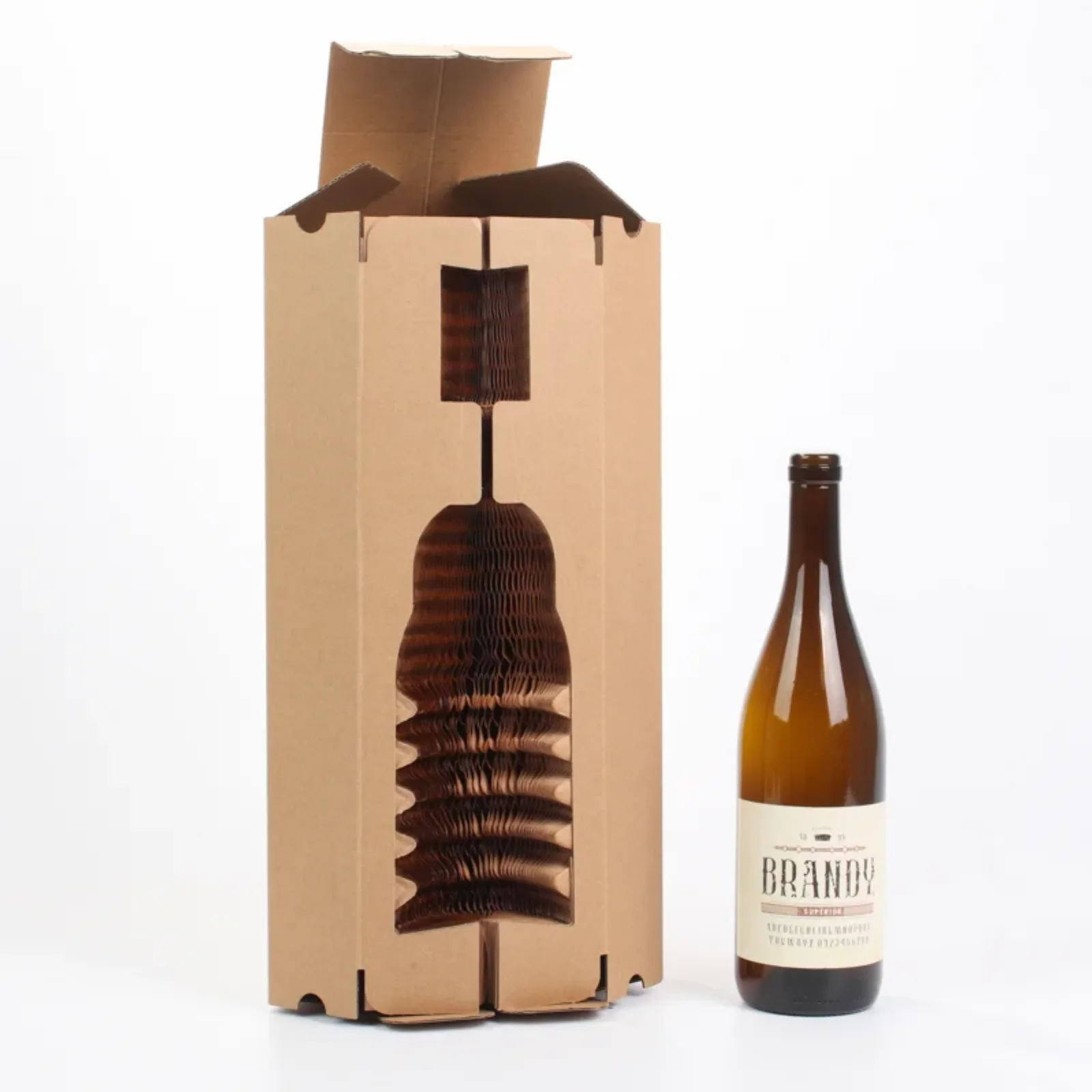

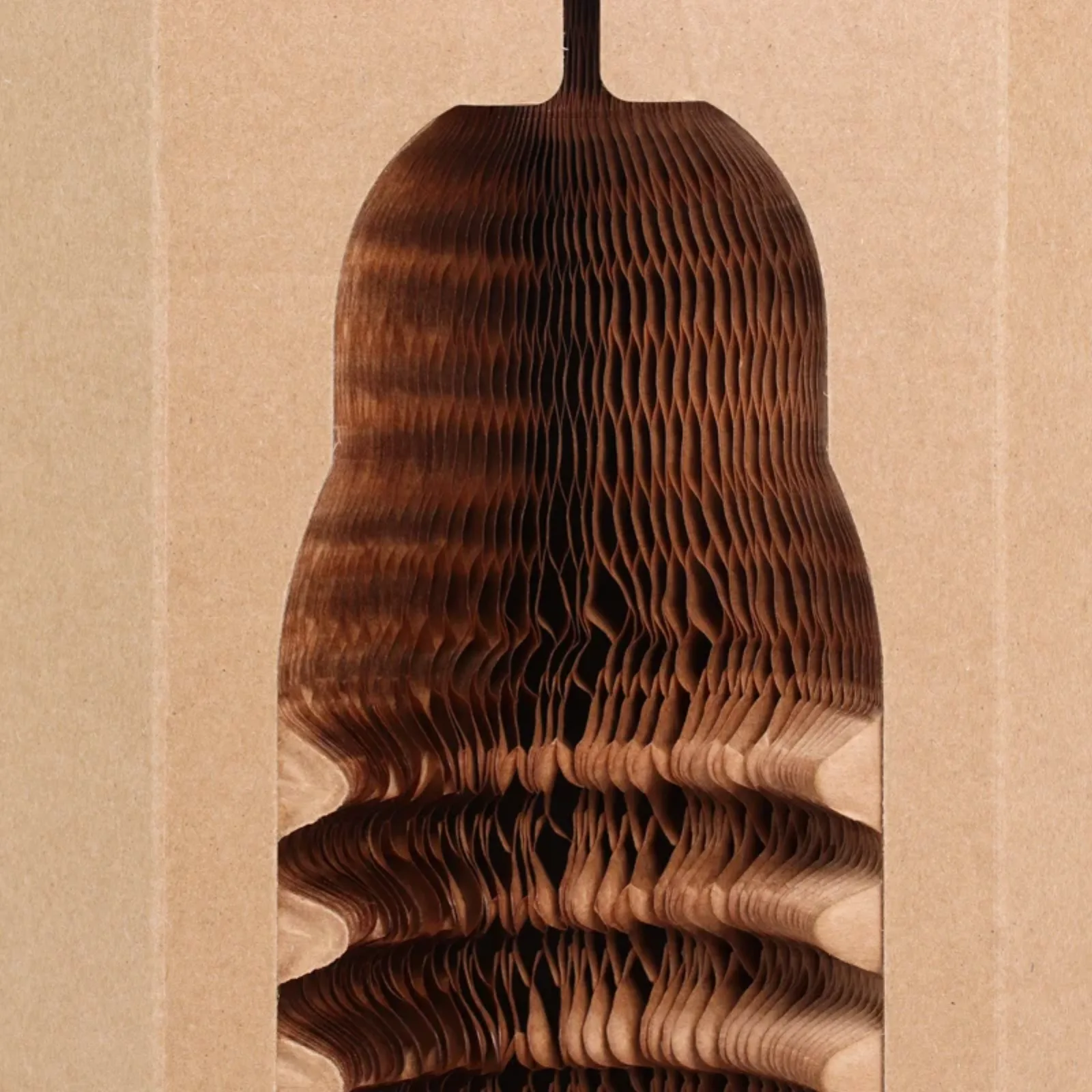

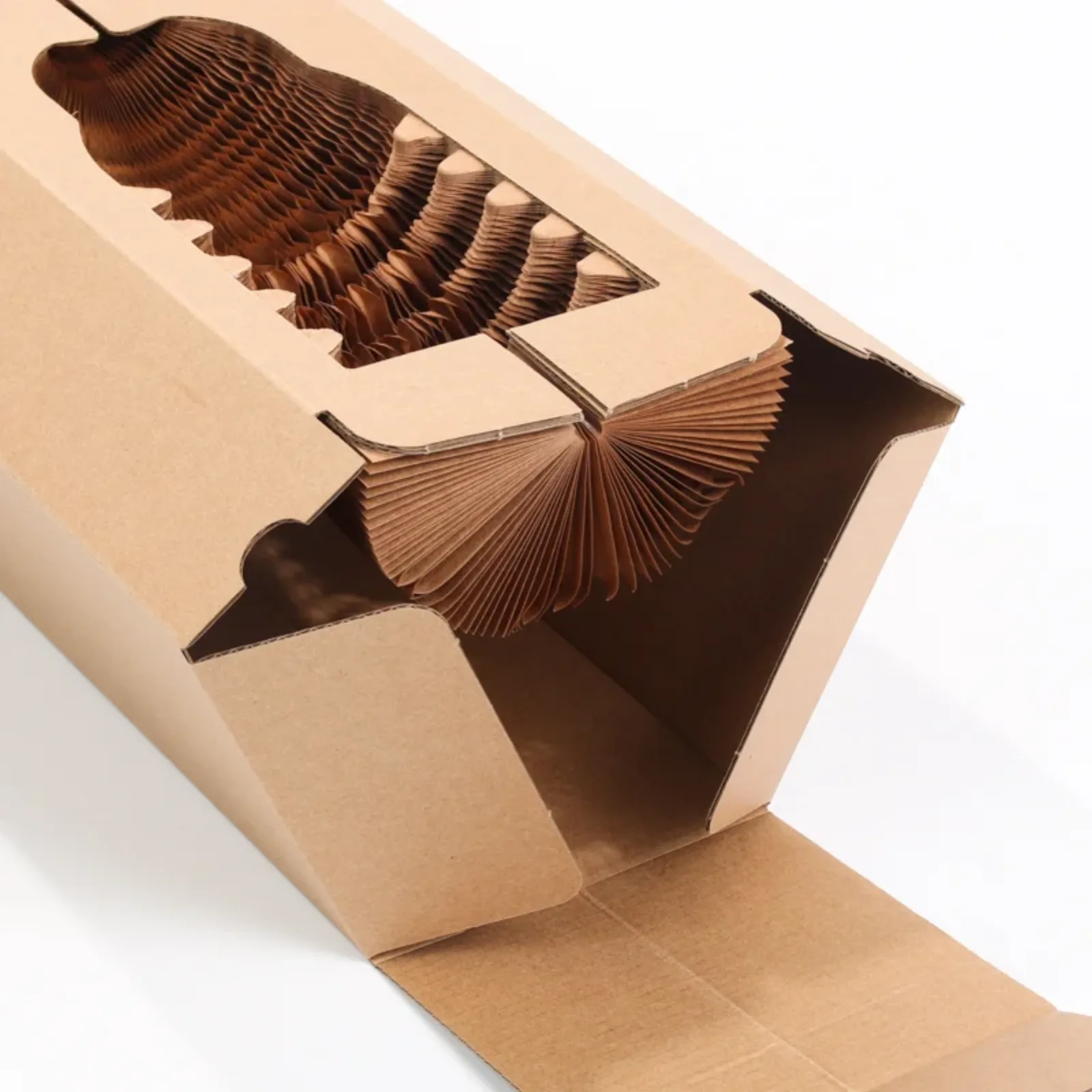

The body is corrugated cardboard, giving a rigid shell without adding much weight. The real work happens inside, where a newly designed honeycomb paper layer expands to hold the bottle in place, keeping the glass away from the outer walls. That honeycomb absorbs impact energy rather than passing it to the bottle.

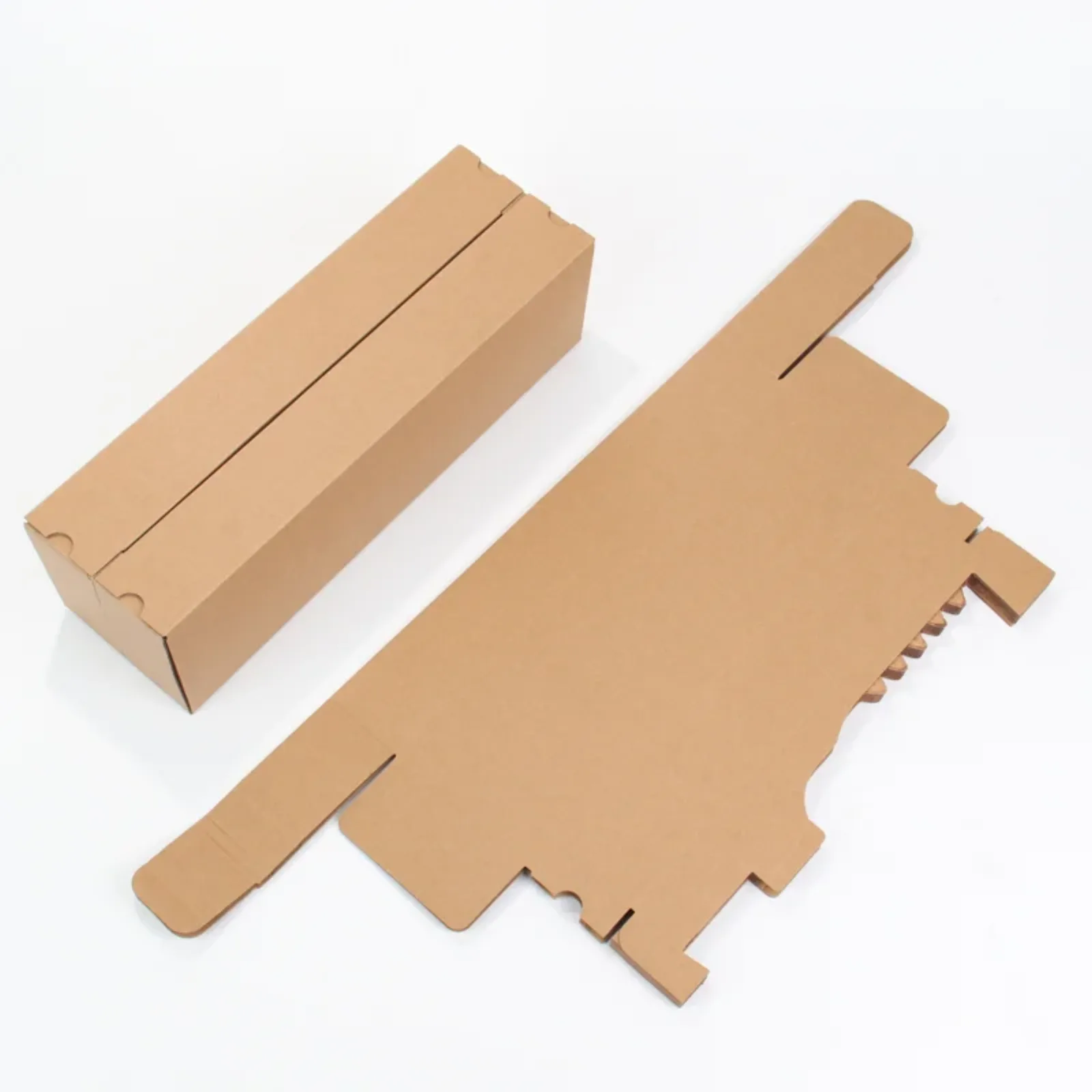

Since it's a foldable structure the box ships flat and erects in seconds. Our control tolerance for foldable boxes demands creases never crack and corners come up at 90 degrees. The magnet position, if you add one, is held to plus or minus 1 mm. And the result is a box that looks clean on a shelf while surviving the back of a courier van.
Bottle fit and checks
The honeycomb cushioning holds the bottle at four points, so there's no unsupported neck or shoulder. That's our insert rule, and it matters for wine bottles with long necks. We check the fit three ways before shipping: shake the box for 10 seconds while the bottle remains in place, tilt it to 45 degrees with no sliding, or invert it and still no release. Those checks use your actual bottle or a dimensional match, and if it shifts we adjust the honeycomb cut until it passes. No rattles.
Where it works best
Wineries shipping single bottles to customers, brand retailers stocking shelves, and event planners handling weddings or holiday gifts will find this box a good pick, especially when they want protection without foam. Keeping freight costs down is easier because the flat-packed design saves space, but it's the wrong choice when a rigid gift presentation with a lid and base is needed, or when multiple bottles ship in one unit. For those, a rigid box or a multi-bottle insert makes more sense.
Buyer questions
Can you make this box for a champagne bottle with a wider base?
Yes, we cut the honeycomb cushioning to match your bottle's profile, even wider bases and longer necks, so send us dimensions or a sample. Then we adjust the insert for a four-point hold that passes our shake, tilt, and invert checks.
How does the flat-packed design affect the box's strength after folding?
Structural strength comes from the corrugated board, and the honeycomb insert adds rigidity once the bottle sits inside. An erected box with a loaded bottle goes through our in-house checks, and the 1.2 m six-face drop test is part of that. The creases are designed so they won't crack and corners stay at 90 degrees.
Can I print a full-colour design on the outside of this corrugated box?
Yes, we can print directly on the corrugated board with your design. Choose custom colours and include your logo. Pantone matching is used, and you'll approve a first article before mass production. For large solid areas, black or deep blue for example, a proof comes first because those colours are harder to hold perfectly.
Related products
Quote this box
Tell us your bottle, quantity and artwork stage. We reply with structure options, sample plan and pricing.
